Causes and Solutions of Frequent Fuse in Microwave Oven

Creating a cozy and peaceful summer home requires carefully selected appliances that enhance comfort without sacrificing style and efficiency. Appliances 4 Less springfield offers residents of Bolivar, aMarshfield, Willard, Nixa and Seymour a selection of opened, scratched and dented appliances that are perfect for your summer living. Here is our guide to the must-have appliances for a cozy summer home.

When the microwave oven fuse is continuously blown in a short period of time and is accompanied by burnt smell, this has gone beyond the scope of common component failure and is actually a systematic failure warning issued by the equipment. As a circuit protection device, the repeated fusing of the fuse directly points to the continuous abnormal current impact of the circuit system, which requires immediate and systematic investigation.

(1)、Control System Faults

1. Mechanical failure detection of door interlock switch

The micro switch group installed around the door frame is the safety lock of the high voltage system. Long-term high-frequency use of door interlock switch machinery will cause spring fatigue and contact oxidation, causing abnormal switch action. The typical performance is increased door closing resistance (>5N), abnormal switch sound (>65dB). This kind of fault will cause the circuit to be on and off intermittently, resulting in instantaneous high current impact fuse. The closing resistance (<1Ω) and insulation resistance (>100MΩ) shall be measured with a three-digit half digital multimeter, and double verification shall be carried out with the insulation resistance tester.

2. Line insulation aging verification

Continuous high temperature environment will accelerate the degradation of wire insulation. Aged wire will appear surface hardening, cracking, color deepening and other characteristics. In summer high temperature or continuous operation, brittle insulation layer is easy to cause short circuit between lines, so it is necessary to check the wiring in high temperature area. The insulation resistance should be> 100MΩ(500V DC test), the ambient temperature should be controlled at 23±2 ℃, and the humidity should be 45%-55%.

(2)、High Voltage System Faults

1. Transformer winding short circuit detection

As the core component of 220V boost to 2000V, the failure of winding insulation will cause the primary coil current to surge (>4A). The fault is accompanied by obvious buzzing sound (>65dB) and body overheating (>60 ℃). Equipment with a service life of more than 5 years shall be monitored emphatically. The resistance value of the primary winding should be 2.0±0.5 Ω, the resistance value of the secondary high-voltage winding is 80-120Ω, and the high-voltage terminal voltage should be indirectly measured by series voltage division method (safely expand the range to 3000V).

2. High-voltage capacitor hidden breakdown

The aging of the capacitor medium will form a quasi-short circuit state at the moment of charging, causing the current to swell (>200mA). This fault requires professional detection using a high-voltage megohmmeter (withstand voltage 2100V, no breakdown in 1 minute), and conventional multimeters cannot be accurately diagnosed. Insulation resistance shall be> 1000MΩ.

3. High-voltage diode reverse breakdown

A diode failure will cause the AC to pass through, causing an abnormal secondary current (>1.5A). The fault is manifested by progressive heating efficiency decay (>20%), which needs to be measured offline to confirm the reverse resistance (>100MΩ).

(3)、Core Components and External Factors

1. Magnetron life cycle management

As the core of microwave generation, magnetron design life of about 2000 hours. As the use time increases, the cathode emission ability declines, resulting in an increase in the operating current (>10A). The typical manifestations are prolonged heating time (>30%) and uneven heating, which need to be comprehensively evaluated in combination with the duration of use. The anode voltage should be 4kV, the cathode current is 10A, and the insulation resistance should be> 100MΩ(DC1kV test).

2. Fuse specification calibration

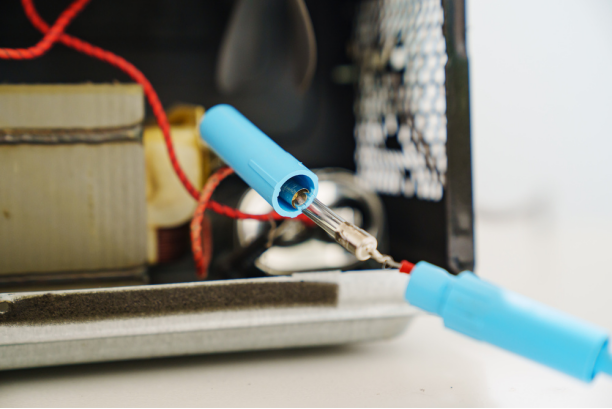

An incorrect specification fuse will mask the real fault. The over-current fuse may misoperate due to normal starting impact, and must be replaced in strict accordance with the equipment nameplate parameters (such as 900mA/5kV). The rated current of the fuse must match the parameters of the equipment nameplate, and the wrong specification will lead to protection failure or misoperation.

3. Power grid fluctuation response strategy

The voltage fluctuation of 220V 10% may exceed the limit (<198V or> 242V) in the peak power consumption of old residential areas. Low voltage operation will force the equipment to increase the working current (>15%), which will accelerate the loss of components for a long time. High voltage operation will accelerate the aging of transformer insulation (>30%). It is recommended to configure the regulator (3%) or adjust the use period (avoid the peak of 18:00-21:00).

(4)、Systematic treatment and safety specification

1. Scientific investigation process

Fault handling shall follow the process of immediate deactivation → electricity inspection confirmation → basic inspection (multimeter resistance/voltage measurement) → professional inspection (insulation resistance/withstand voltage test) → maintenance or replacement of parts. Temporary replacement of fuses is prohibited as a routine measure and systematic testing is required to locate the root cause. This maintenance work should be carried out by certified professionals, using insulated tools (withstand voltage> 5000V), wearing insulated gloves (withstand voltage> 1000V) and goggles.

2. Professional maintenance guidelines

The user's own handling is limited to basic inspection, and core maintenance must be performed by professionals. Establishing regular maintenance awareness (once every six months) and mastering basic fault judgment methods (such as observation and auscultation) are the keys to ensure the safe operation of equipment. Insulation recovery (insulation tape wrapping) and grounding inspection (grounding resistance <4Ω) shall be carried out after maintenance.

Conclusion

The fusing of the fuse is a safety signal issued by the device and needs to be interpreted scientifically. Through systematic investigation and professional maintenance, it can not only ensure the normal operation of the equipment, but also be responsible for the safety of household electricity. Correctly handle the fault, let the kitchen appliances really serve the quality of life. All maintenance operations must comply with safety regulations to ensure the safety of household electricity.
